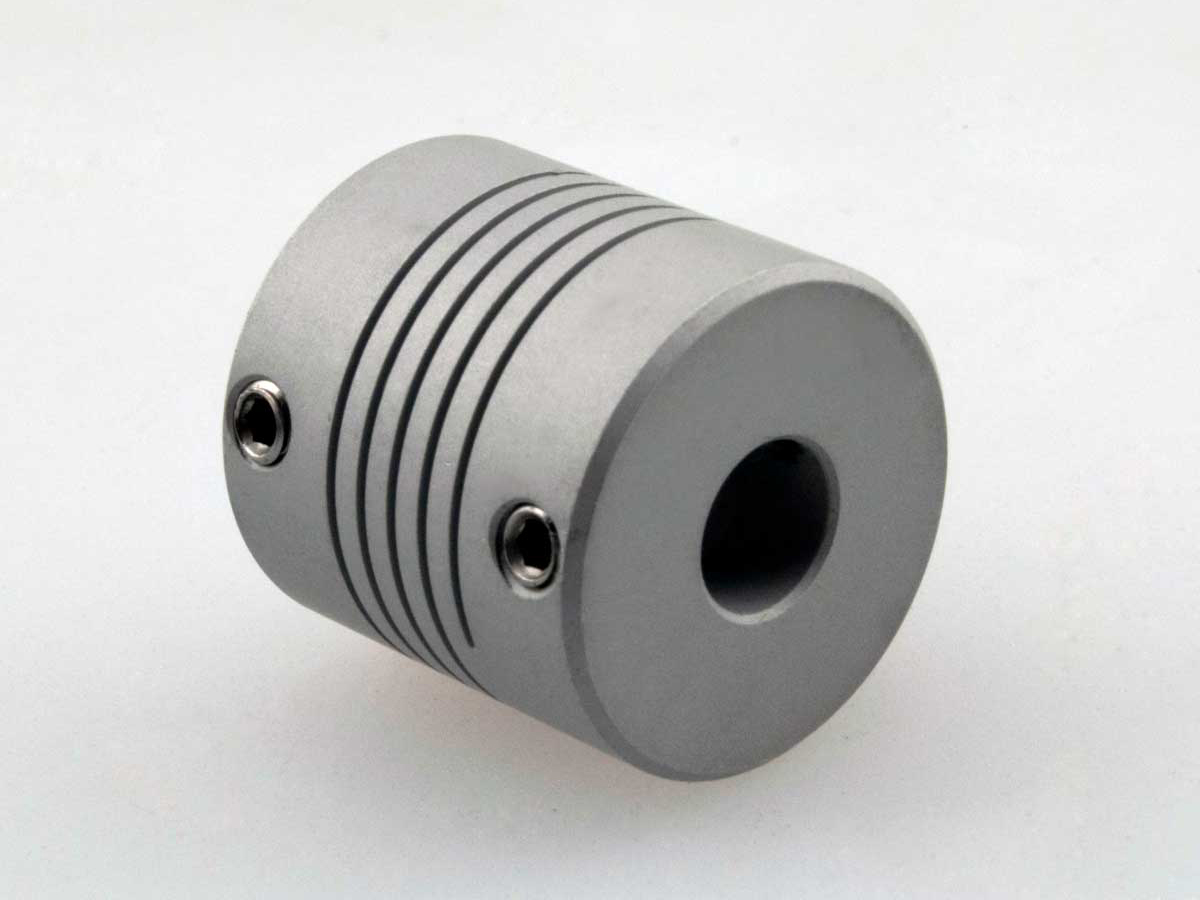

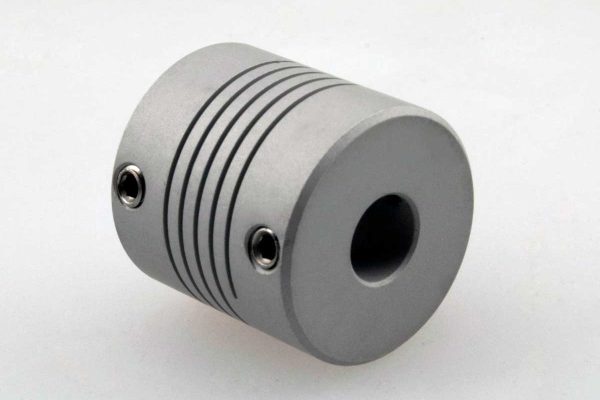

AEM075-8-8 Helical A Series Flexible Aluminum Set Screw Couplings

AEM075-8-8 Helical A Series Flexible Aluminum Set Screw Couplings

$140.66 Each View Wholesale Pricing

Availability: 4 in stock

Wholesale Pricing

Min Max Price Save
59$92.36$48.30
1024$59.40$81.26
2599$30.45$110.21
5099$27.97$112.69
100249$26.05$114.61
250499$24.83$115.83
500999$24.29$116.37

Series

Attachment Type

Set Screw
For Motion Type

Continuous, Forward/Reverse, Start/Stop
Material

7075-T6 Aluminum Alloy
Finish

Clear Anodize
Outside Diameter

3/4 in
Length

7/8 in
Major Bore

1/4 in
Minor Bore

1/4 in
Max. RPM

10,000
Max. Torque

18 lb/in
Max. Operating Temp.

200°F
Parallel Misalignment

0.01 in
Angular Misalignment

0.01 in
Axial Motion

5 deg

Contact us for orders of 1,000+

Helical A Series Flexible Aluminum Couplings meet performance demands over a wide range of applications, including drive systems for encoders, instrumentation, lead screws, small pumps, feed rollers and anywhere a light to medium duty, torsionally flexible coupling is required.

Helical A Series Flexible Aluminum Couplings is Helical's most popular coupling due to an array of options, in a variety of diameter sizes, that allows you to tailor the A Series to your specific applications. Helical A Series Flexible Couplings feature no maintenance and shaft sizes from 3/32'' to 3/4''. Helical A Series Flexible Aluminum Couplings are available in a 7075-T6 Aluminum Alloy material, and with an Integral Clamp or Set Screw attachment.
