MC7 Series

Flexible Stainless Steel Set Screw Couplings

The Helical MC7 Series Flexible Stainless Steel Set Screw Couplings offer a full range of torque capacities and bore sizes, all with a .030in parallel offset. These couplings attach to shafts using a set screw attachment method and are designed for a wide range of applications. Featuring industrial motor shaft couplings and a large parallel misalignment capacity, they also provide high torque capacity and accommodate large shaft diameters. Designed for encoder/resolver applications, moderate torque pumps, lead screws, and more, the MC7 Series is the ideal choice for rugged, tough, and long-lasting coupling needs.

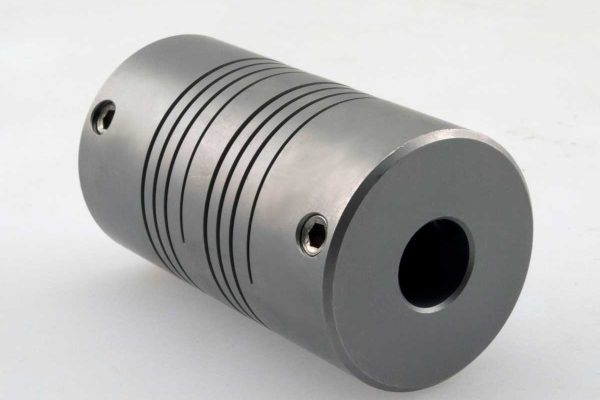

  • MC7100-10-10 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7100-10-10

    Outside Diameter: 1 in
    Length: 1 3/4 in
    Major Bore: 5/16 in
    Minor Bore: 5/16 in

  • MC7100-10-5.08mm Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7100-10-5.08mm

    Outside Diameter: 1 in
    Length: 1 3/4 in
    Major Bore: 5/16 in
    Minor Bore: 5.08 mm

  • MC7100-10-8 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7100-10-8

    Outside Diameter: 1 in
    Length: 1 3/4 in
    Major Bore: 5/16 in
    Minor Bore: 1/4 in

  • MC7100-12-10 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7100-12-10

    Outside Diameter: 1 in
    Length: 1 3/4 in
    Major Bore: 3/8 in
    Minor Bore: 5/16 in

  • MC7100-12-12 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7100-12-12

    Outside Diameter: 1 in
    Length: 1 3/4 in
    Major Bore: 3/8 in
    Minor Bore: 3/8 in

  • MC7100-8-8 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7100-8-8

    Outside Diameter: 1 in
    Length: 1 3/4 in
    Major Bore: 1/4 in
    Minor Bore: 1/4 in

  • MC7100-9.63MM-8.13MM Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7100-9.63MM-8.13MM

    Outside Diameter: 1 in
    Length: 1 3/4 in
    Major Bore: 9.63 mm
    Minor Bore: 8.13 mm

  • MC7125-12-12 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-12-12

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 3/8 in
    Minor Bore: 3/8 in

  • MC7125-16-10 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-16-10

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 1/2 in
    Minor Bore: 5/16 in

  • MC7125-16-14MM Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-16-14MM

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 1/2 in
    Minor Bore: 14 mm

  • MC7125-16-16 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-16-16

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 1/2 in
    Minor Bore: 1/2 in

  • MC7125-16K3-12 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-16K3-12

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 1/2 in
    Minor Bore: 3/8 in

  • MC7125-18-10 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-18-10

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 9/16 in
    Minor Bore: 5/16 in

  • MC7125-20-10 Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-20-10

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 5/8 in
    Minor Bore: 5/16 in

  • MC7125-20-10MM Helical MC7 Series Flexible Stainless Steel Set Screw Couplings

    MC7125-20-10MM

    Outside Diameter: 1 1/4 in
    Length: 2 3/8 in
    Major Bore: 5/8 in
    Minor Bore: 10 mm
