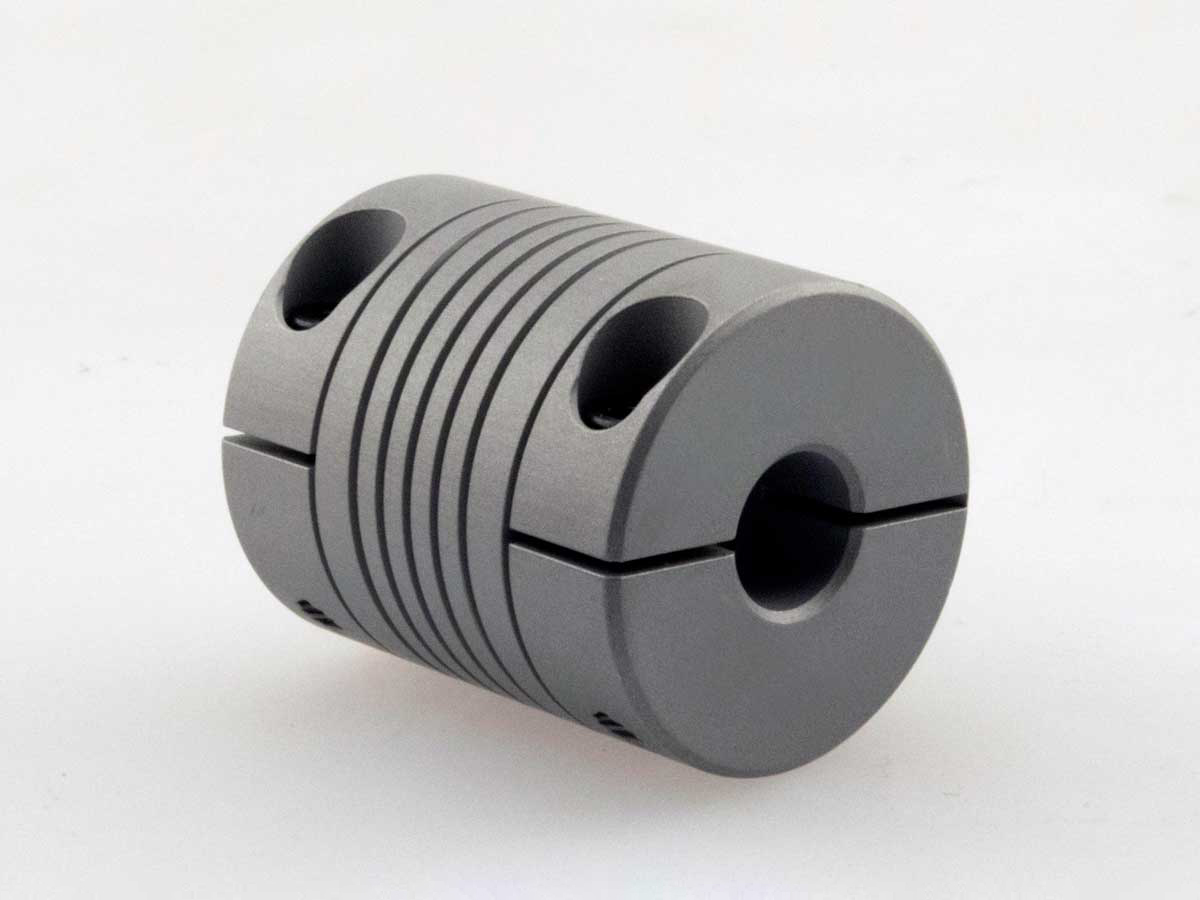

XCA15-5MM-3MM Helical W Series Aluminum Integral Clamp Couplings
$230.35 USD Each View Wholesale Pricing
Wholesale Pricing
| Min | Max | Price | Save |
|---|---|---|---|
| 5 | 9 | $146.14 | $84.21 |
| 10 | 24 | $93.94 | $136.41 |
| 25 | 99 | $48.15 | $182.20 |
| 50 | 99 | $44.26 | $186.09 |
| 100 | 249 | $41.19 | $189.16 |
| 250 | 499 | $39.26 | $191.09 |
| 500 | 999 | $38.42 | $191.93 |
| Series | |
|---|---|
| Attachment Type | Integral Camp |
| For Motion Type | Continuous, Forward/Reverse, Start/Stop |
| Material | 7075-T6 Aluminum Alloy |
| Finish | Clear Anodize |
| Outside Diameter | 15 mm |
| Length | 24 mm |
| Major Bore | 5 mm |
| Minor Bore | 3 mm |
| Max. RPM | 10,000 |
| Max. Torque | 0.30Nm |
| Max. Operating Temp. | 200°F |
| Parallel Misalignment | 0.10 mm |
| Angular Misalignment | 0.25 mm |
| Axial Motion | 3 deg |
Contact us for orders of 1,000+
Helical X Series Flexible Servo Cross Slot Couplings provide an optimal balance of radial flexibility and torsional stiffness for servo applications. Featuring high torsional stiffness, low radial loads, zero backlash, and one-piece integrity, they deliver precise motion control. With up to 10 times the torsional stiffness of beam types, they are a cost-effective alternative to bellows couplings for high-performance motion systems.
